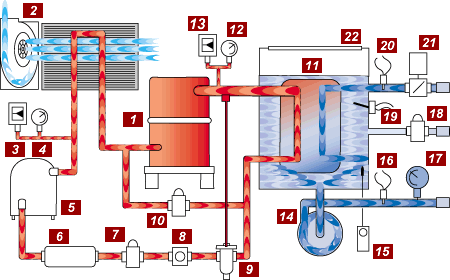

Air-Cooled Water Chiller

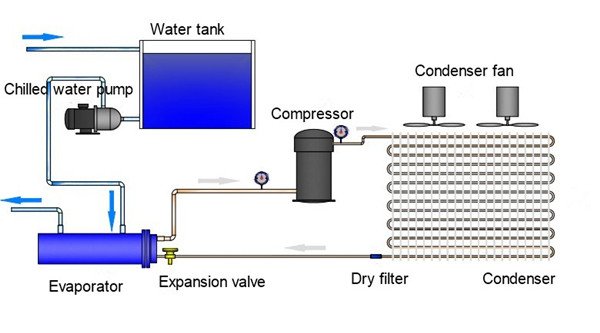

The air-cooled chillers that we owned are vapour-compression systems. The main components of the type of system includes the evaporator itself, together with the condenser, compressor and expansion valve. Its cooling is achieved by this kind of unit by means of a refrigeration cycle.

It starts using a great, low-pressure mix of fluid and vapour refrigerant that goes in to the evaporator. Next, it takes the heat from the water that the chiller is cooling.

The refrigerant is condensed to some high pressure and temperature, which is enough to let the condenser release its heat to the air.

This induces the refrigerant to condense into a liquid, which then continues to sub-cools. It leaves the high-pressure liquid as well as the condenser enters the expansion valve. This leads to some big pressure drop across the circuit.

The stress reduction also causes a small part of the iqf freezer or refrigerant to boil off, or flash. It also displays in the event the chiller is in short supply of gas. It flashes more if this is the case. The refrigerant helps lower the remaining portion of the refrigerant to a specified temperature, ahead of the mix entering to the evaporator. Then the cycle begins again.

The condenser is a key component of a chiller. It acts as a heat-exchanger that keeps the heat in the chiller’s refrigerant away. A water-cooled chiller releases heat into the water from an adiabatic cooler or air blast cooler and a cooling tower. Meanwhile, a basic condenser will use axial fans (propeller kind) to draw air over a finned tubed heat transfer area (heat-exchanger).

The difference in temperature or “delta T” – between the hot fuel in the air outside of the cooler and condenser prompts to the heat transfer. The heat reduction of the vapour will make it condense into fluid. The last component is the sub-cooler. This lowers the liquid gasoline temperature even more until it’s under its temperature. These units are also ideal when you require quick delivery and installation with all the least fuss.

This is really a heat-exchanger that transfers heat from a processor air conditioning water circuit to the cooler refrigerant. Most air cooled chillers include acoil in tank evaporator or a shell and tube evaporator, in addition to a plate heat-exchanger.

The tube and shell evaporator is used mainly for chilled water applications. The awesome liquid evaporator flows through tubes inside a shell if a chiller has a shell and tube evaporator. The circuit water fills the shell around the the tubes. And, as the heat transfers to the refrigerant in the water, the tubes are boiled in by the gas. This draws the ensuing vapour to the compressor.

While the water leaves in one end, water goes to the shell at another end. You can use a plate heat exchanger evaporator for fluid cooling or chilled water uses. Stainless steel evaporators, in the meantime, they are suitable for drink and food uses for example portable water systems or batch cooling.

A coil-in tank model has a coil block, typically copper and aluminium fins to provide an effective heat transfer area. The coil block is submerged in a water tank, which plays the role of a buffer. This sort of coil is best suited for process cooling, for instance, reactor cooling systems in chemical cooling.

Which Is Better Air Cooled Chillers Or Water-Cooled Chillers

water chiller bakeryWhen summers comes, chillers are the only way of beating the heat. The elevated level of humidity in the air often makes people serves as a breeding ground for bacteria and parasites and sweat profusely. The humid air circulating in-doors may possibly worsen vomiting and allergic problems, leaving the environment un-hygienic. Dehumidifier’s purify air in-doors, rendering it fresh and secure to breathe in. Designed For for industrial reasons, these dry air Dehumidifiers are now progressively used in every new company and household.

Chillers are basically a closed system, which utilizes the means of evaporation and condensation to cool the air in an area. Making utilization of drying engineering, the temperature is cooled by the air system by passing heat source to the evaporator coil from the source. There are two kinds of chillers. One is air-cooled and another being water cooled.

There exists no formulae to find the dehumidifier that is perfect and neither of them would be suitable to every device. Each chiller has its own set of benefits and drawbacks along with they should be efficiently scrutinized by a purchaser before investing in one. Space is one of the most important factors, as it pertains to selecting a De-Humidifier. Air chillers are greater in dimension and need a big area for installation, even if the water-cooled chillers are small, but require a mechanical room for efficient functioning and cooling towers. They might need constant flow of fresh air and an obstructed air flow may create problems with re-circulation. Water chilled coolers are more suitable, when there’s insufficient of space and restricted air flow.

Every chiller generates a sound when it is in use. The noise of air-cooled chillers cannot be determined as each fans installed in them would have a decibel that is different. It’s better to commit in a system, which is more quiet since there are various ways to decrease the sound produced by them. Air chillers are usually cheaper compared to the investment property on the upkeep of water chillers. However, lifespan is less-efficient and has shorter lifespan compared to water chillers with an air chillers. Water chillers on the other hand, have a lifetime that is much longer and functions efficiently with maintenance. The efficiency of the chillers along with lifespan is determined on the caliber of the chiller you choose. Ideally, it’s always better to consult your nearby contractor before buying one.
